Robotics Electronics Manufacturing
From precision servo drives and safety I/O to AI vision, navigation and battery management, Keep Best PCBA builds the electronic assemblies that help robots sense, think, move and work reliably.
One robot, many critical boards
A modern robot is a distributed electronic system. It may contain a high-speed compute board, multiple motor-control boards, safety circuits, sensor interfaces, wireless modules and a dedicated power system—all operating under vibration, heat, electrical noise and tight mechanical constraints. We help robotics teams turn those requirements into repeatable PCB assemblies.
Electronic architecture
Customers can engage us for a single controller or for a family of interconnected boards. The following subsystems cover the most common robotics PCBA requirements.
Processor, FPGA, GPU/NPU and memory assemblies for motion planning, SLAM, perception, machine vision and real-time coordination. Typical challenges include BGA escape routing, high-speed memory, controlled impedance and thermal management.
Brushless DC, stepper and servo-drive PCBAs with gate drivers, current sensing, encoders and braking circuits. Layout must control switching noise while handling high current and rapid acceleration cycles.
Emergency-stop, safety relay, interlock, light-curtain and redundant I/O boards. Isolation, diagnostic coverage, deterministic response and clear separation of power and logic domains are central considerations.
Interfaces for cameras, LiDAR, radar, ultrasonic sensors, IMUs, force/torque sensors, tactile arrays and encoders. Low-noise analog design, precise timing and robust connectors protect measurement integrity.
DC-DC conversion, power distribution, battery-management, protection, hot-swap and docking/charging PCBAs. Creepage, clearance, copper weight, heat dissipation and fault protection are matched to the power envelope.
EtherCAT, CAN/CAN-FD, RS-485, Ethernet, USB, Wi-Fi, Bluetooth, cellular and GNSS modules, plus display, button, audio and status-light boards for robot-to-machine and human-to-robot interaction.
Camera interface, image acquisition, illumination and trigger-control assemblies for inspection, bin picking, navigation and quality control. Signal integrity, grounding and synchronized lighting are essential.
Compact boards installed in grippers, weld heads, screwdrivers, dispensers and tool changers. These PCBAs often require flex connections, high connector-cycle life, local sensing and resistance to vibration and contamination.
Charging docks, access points, beacon nodes and fleet gateway electronics that keep mobile robots connected and available. Designs may combine power electronics, communications and rugged external I/O.
Inside an articulated robot
A six-axis arm does not rely on one circuit board. A typical system distributes control, feedback, power and safety electronics from the controller cabinet through every joint and into the wrist-mounted tool. The exact architecture varies, but the following PCBA locations are common in industrial arms and cobots.
Located in the controller cabinet or robot base. Runs trajectory planning, kinematics, interpolation and real-time coordination of all axes using an MCU, FPGA, SoC or industrial computer module.
Distributes DC bus and low-voltage rails to joint drives, brakes, sensors and tools. Typical functions include inrush limiting, current monitoring, fusing, surge protection and power-sequence control.

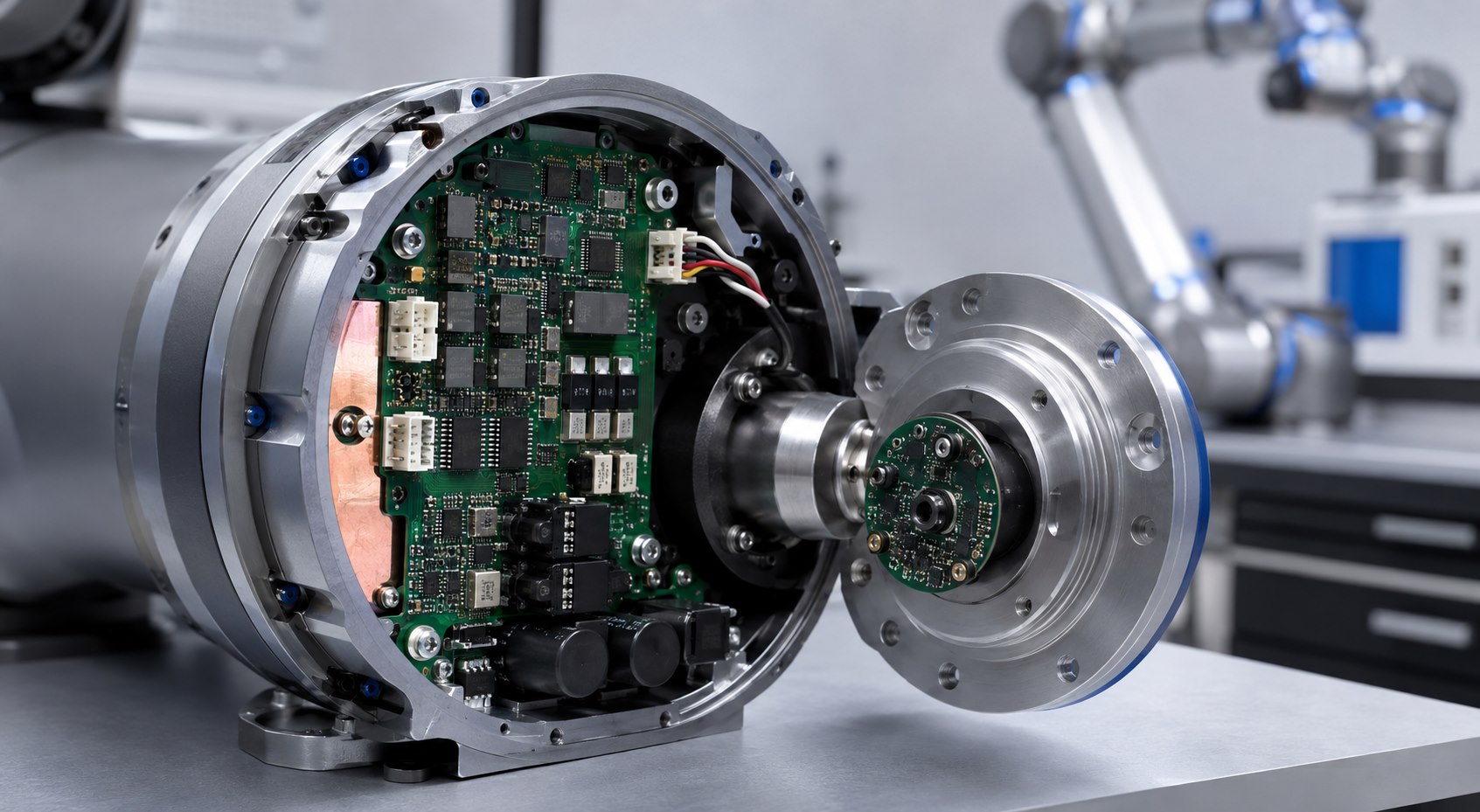

One per axis or a multi-axis bank. Converts motion commands into controlled motor current using gate drivers and power MOSFETs/IGBTs, with phase-current sensing and temperature feedback.
Small boards mounted close to each joint shaft acquire absolute or incremental encoder signals. Noise control, precise alignment, low jitter and reliable flex or board-to-board connections are essential.
Controls holding brakes on vertical or gravity-loaded axes. The circuit may include release timing, current reduction, flyback suppression, diagnostics and safe behavior during a power interruption.
Conditions strain-gauge or other torque-sensor signals for collision detection and force-limited operation. High-resolution ADCs, stable excitation and careful analog grounding protect measurement accuracy.
Monitors emergency stop, guard inputs, safe speed, safe position and brake status. Designs may require isolated channels, redundant processors, diagnostic feedback and carefully managed failure modes.
EtherCAT, CAN/CAN-FD, RS-485 or vendor-specific real-time networks link the central controller to each joint. Robust transceivers, isolation and deterministic timing maintain synchronized motion.
Provides switched power, digital/analog I/O and communication to the end effector while reducing the cable count through rotating joints. Compact connectors and ESD protection are common priorities.

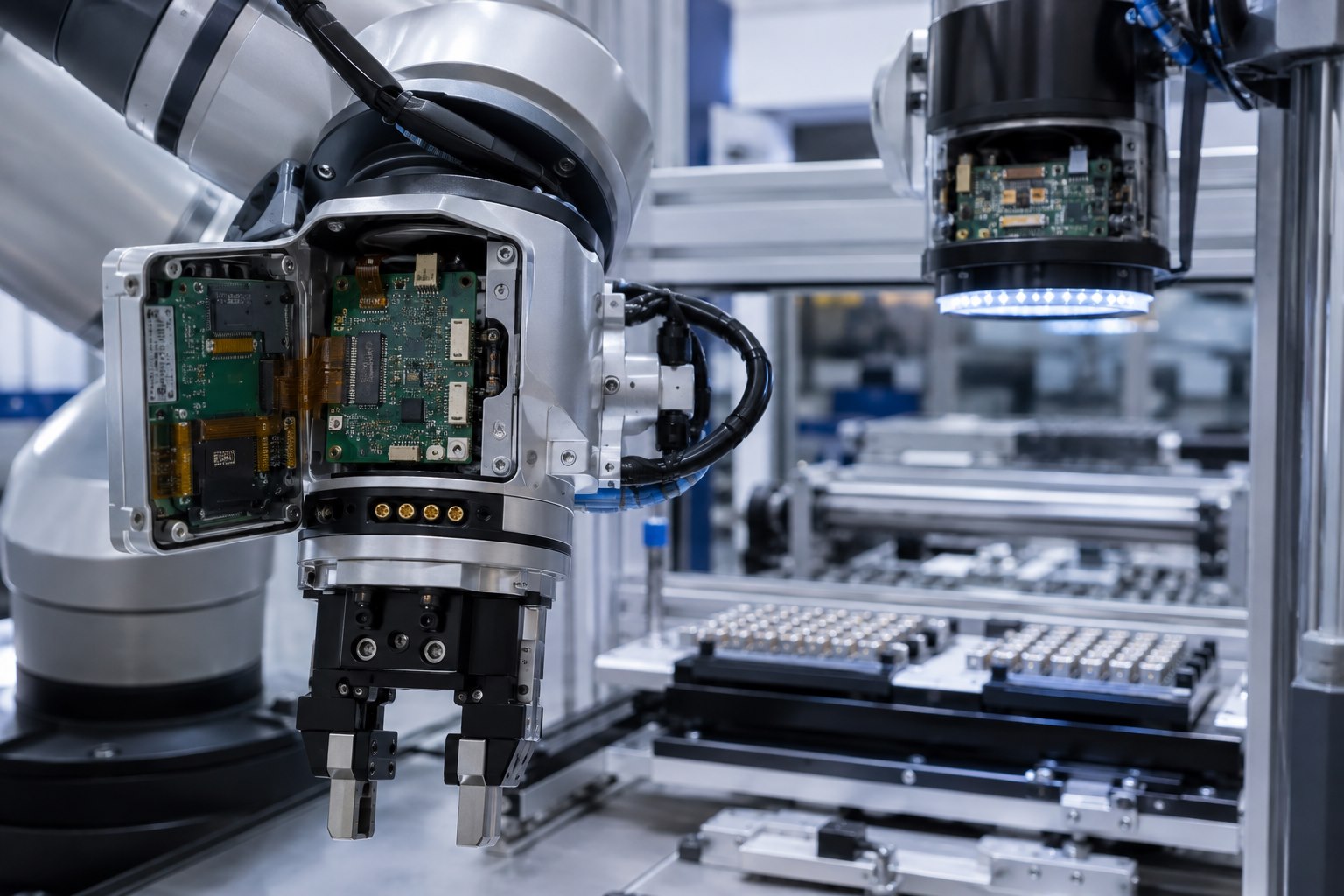

Controls electric fingers, vacuum valves, local motors and grip sensors. The board may integrate force feedback, object detection, tool identification and a compact communication interface.
Supports welding, soldering, screwdriving, dispensing, polishing or laser heads. Typical functions include trigger timing, current/pressure monitoring, actuator control and process-data collection.
Connects 2D/3D cameras, structured-light projectors and synchronized LED illumination for bin picking, inspection, alignment and robot guidance.
Combines display, touch or key input, emergency stop, enabling switch, audio and wired/wireless communication in a handheld operator interface.
Manages tool ID, locking confirmation, pneumatic valve feedback, electrical contacts and safe handshaking when one robot automatically swaps between multiple tools.
The tool changes, but the electronics must still coordinate motion, sensing and process feedback. We support PCBAs used across these civilian factory-automation tasks:
Detailed application map
Robot form factors vary widely, but each market has a recognizable set of control, sensing, power and environmental demands. Select the scenario closest to your product to see the likely PCBA focus.
Six-axis arms, SCARA robots, delta pick-and-place systems, welding robots, painting robots, palletizers and machine-tending cells depend on deterministic motion control and long service life. Typical assemblies include servo-drive boards, encoder interfaces, safety I/O, teach-pendant electronics and industrial communication modules.
Cobots work near people and rely on joint torque sensing, redundant position feedback, safe braking and fast fault detection. Compact joint PCBAs, force/torque sensor boards and safety-control electronics require high channel consistency, low-latency communication and dependable connector systems.

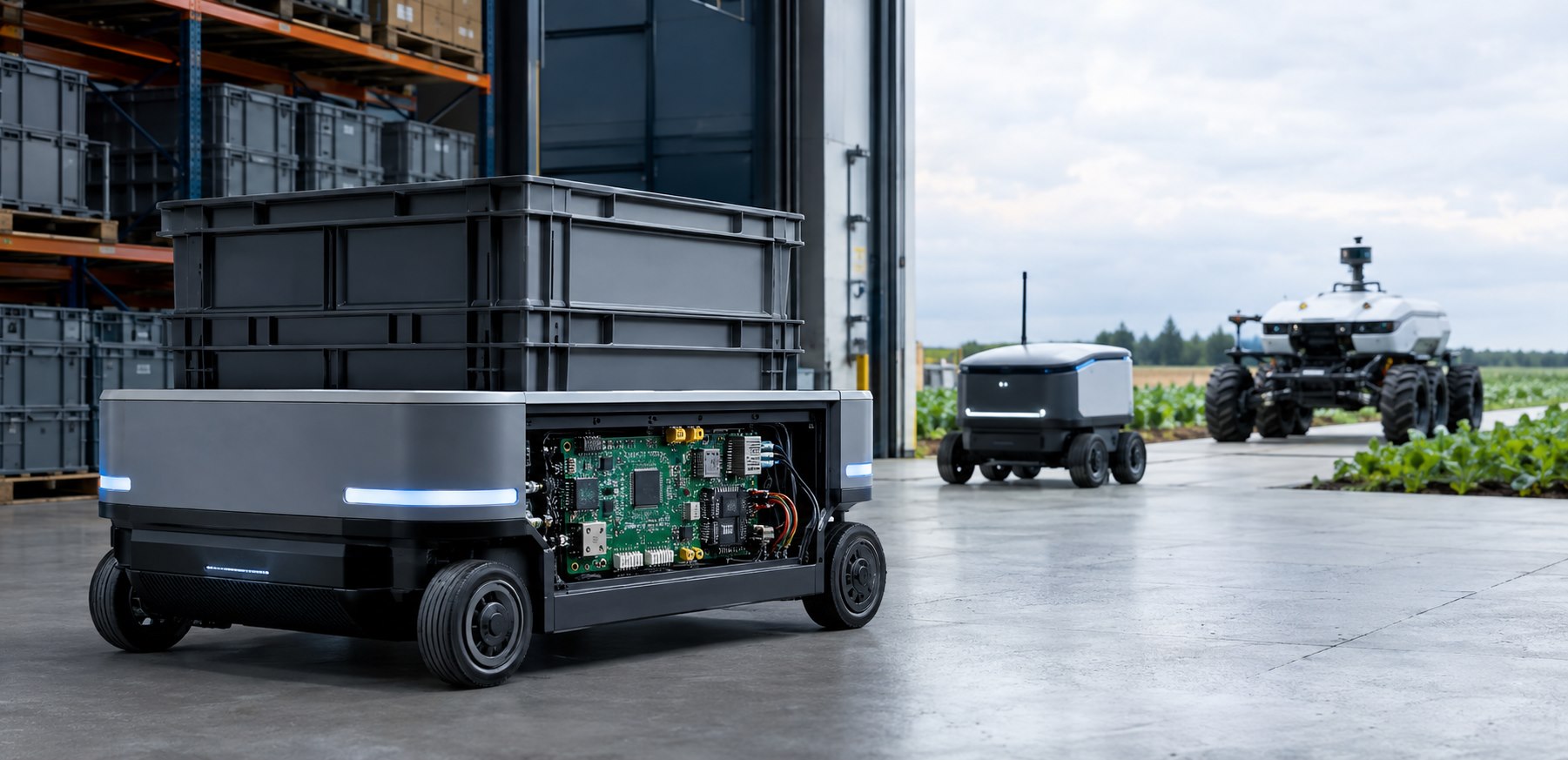

Autonomous mobile robots and automated guided vehicles combine navigation computers, wheel-motor drives, LiDAR/camera interfaces, safety scanners, battery management and charging control. Power integrity, EMI containment and rugged interconnects are critical during continuous travel and docking.
Goods-to-person robots, autonomous forklifts, sortation systems, robotic picking stations and parcel-handling equipment need synchronized motion, barcode/RFID interfaces and reliable fleet connectivity. Controllers must tolerate dust, impact, around-the-clock duty cycles and frequent charge events.

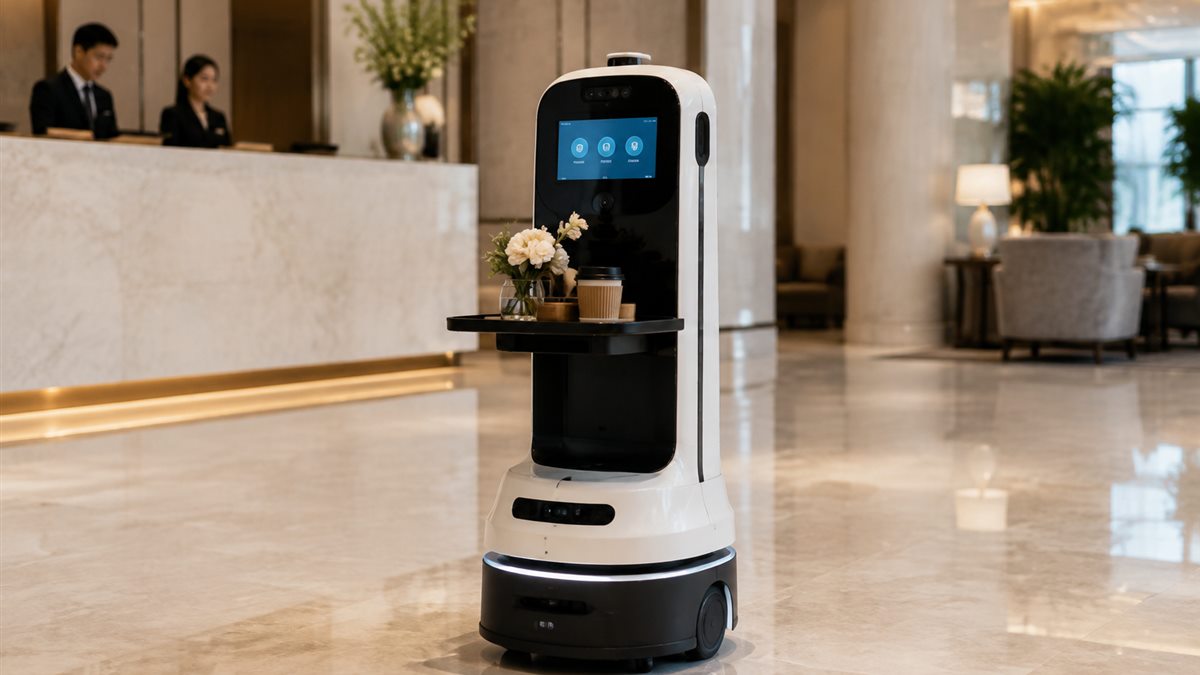

Delivery, reception, guidance, restaurant, retail and hotel robots combine navigation, touch displays, audio, obstacle sensing and secure wireless connectivity. PCBAs must balance computing performance, quiet motor control, battery runtime and a compact enclosure.
Surgical-assistance platforms, rehabilitation devices, exoskeletons, pharmacy robots and hospital transport systems call for precise sensor acquisition, controlled motion and strong traceability. Medical electrical and risk-management requirements should be defined at the system level before PCBA validation.
Autonomous tractors, weeding robots, harvesting platforms, milking systems and crop-monitoring robots operate amid moisture, dust, chemicals, UV exposure and wide temperature swings. Sealed connectors, conformal coating and input protection help ruggedize control and sensing assemblies.
Pipe crawlers, tank inspection systems, power-line robots, sewer robots and magnetic wall climbers integrate cameras, non-destructive testing sensors, lighting and tether or wireless communication. The PCBA may need corrosion protection, wide-input power and robust data links.

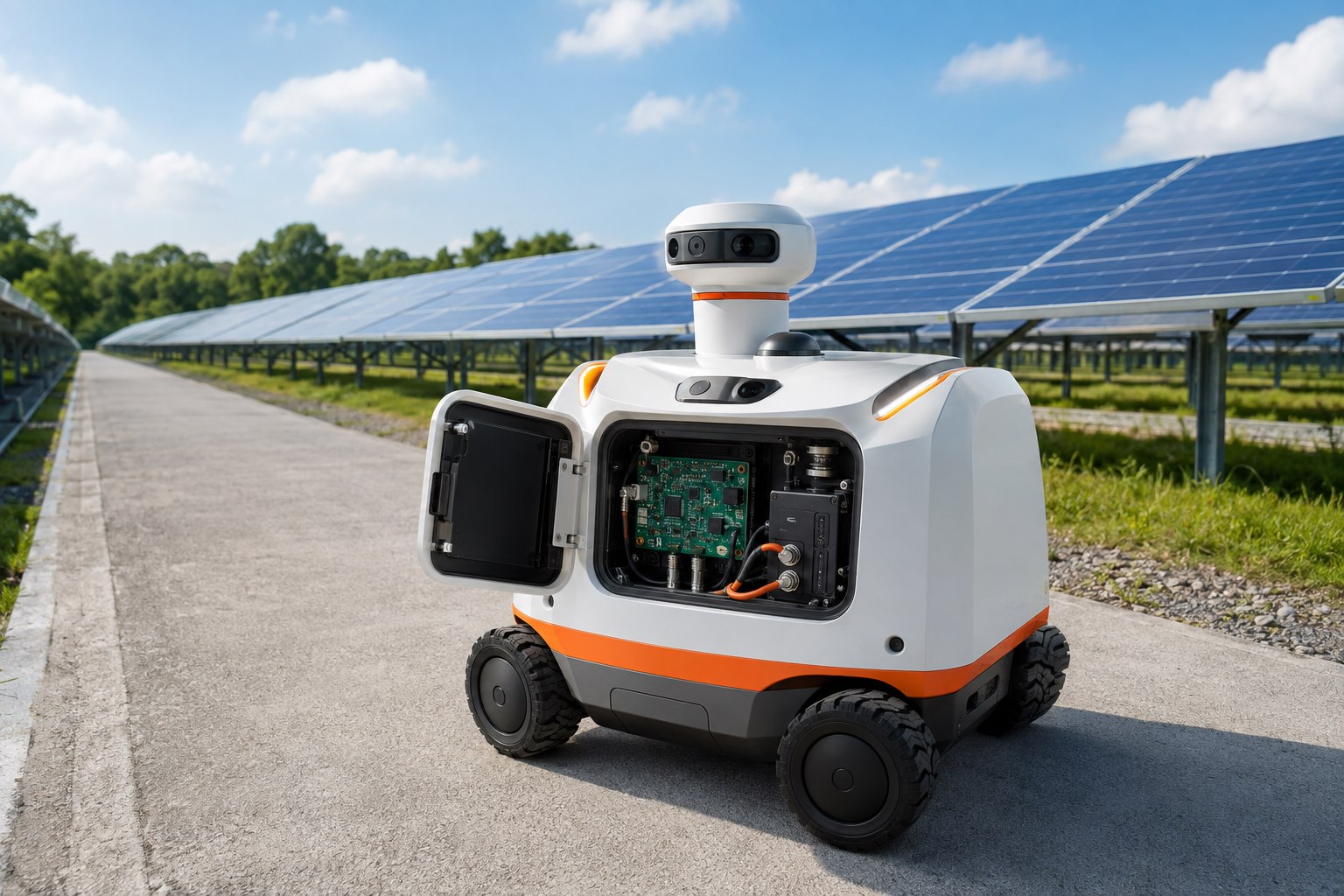

Commercial robots used for solar farms, roofs, bridges, pipelines, utilities and environmental surveying rely on flight/vehicle controllers, ESCs, GNSS, telemetry, gimbal control and camera or sensing interfaces. Low weight, high power density, vibration resistance and clean sensor power are major design drivers.

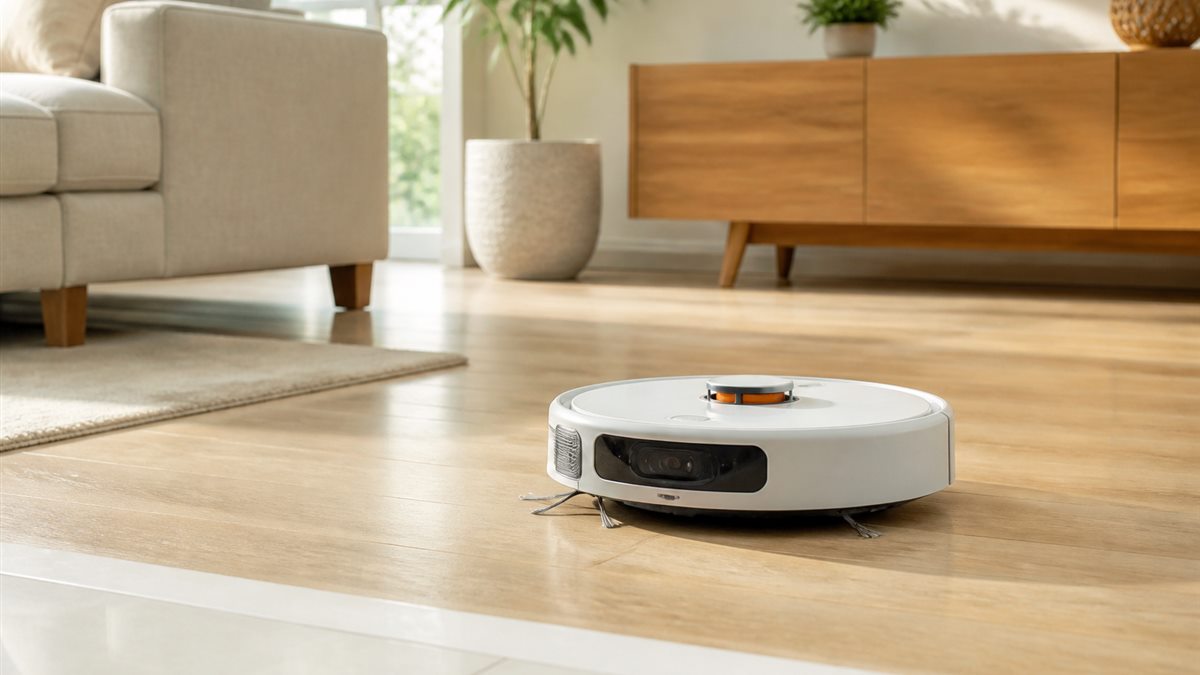

Robotic vacuums, lawn mowers, pool cleaners and window-cleaning robots use cost-optimized motor control, obstacle sensing, battery charging and app connectivity. Design-for-test, moisture protection and component lifecycle planning support reliable volume production.
Humanoid joints, social interaction systems, research platforms and STEM robots may distribute many compact controller boards throughout the body. Common needs include synchronized multi-axis control, audio/vision processing, dense connectors and fast prototype iteration.
Demolition, drilling, surveying, mining and emergency-response robots face shock, debris, temperature extremes and unstable power. Rugged stack-ups, high-retention components, protection circuits and extensive environmental testing should be considered early.
Engineering priorities
The correct build specification depends on where the board sits in the robot, what it controls and what happens if it fails. Our engineering review focuses on the risks below before production.
| Requirement | Why it matters in robotics | Typical PCBA response |
|---|---|---|
| Mechanical reliability | Motors, gearboxes, wheels and tool impacts transmit vibration and shock into the electronics. | Component orientation review, suitable mounting, heavier-component support, connector retention and vibration-aware solder-joint design. |
| Thermal control | Compute modules and motor drives operate in sealed or compact housings with uneven airflow. | Copper balancing, thermal vias, metal-core or heavy-copper options where appropriate, heat-spreader interfaces and thermal-profile validation. |
| EMI/EMC & signal integrity | Fast switching motor stages can disturb encoders, cameras, RF modules and safety I/O. | Power/ground partition review, controlled impedance, differential-pair checks, filtering, shielding provisions and optimized return paths. |
| Power integrity & protection | Regeneration, inrush, hot-plug events and battery transients can stress power rails. | Protection coordination, surge/ESD components, appropriate creepage and clearance, current-path analysis and programmed power-up testing. |
| Environmental durability | Dust, moisture, oils, cleaning agents and condensation can corrode or contaminate assemblies. | Cleaning, conformal coating, selective masking, sealed interface planning and material compatibility review. |
| Compactness & low weight | Joint modules, grippers, drones and wearable robots have strict size and mass limits. | HDI, fine-pitch packages, rigid-flex construction, via-in-pad where justified and dense double-sided SMT assembly. |
| Lifecycle & traceability | Robotics platforms can remain in service for years while processors and sensors change rapidly. | Approved-vendor control, lot traceability, change management, alternate-part review and programming/test record options. |
| Cybersecure connectivity | Connected robots exchange operational data and may receive remote updates. | Secure-element and TPM assembly support, unique device provisioning, protected programming workflow and interface test coverage. |
From design data to tested assemblies
A controlled handoff from prototype to repeat production reduces technical surprises. Keep Best PCBA can support PCB fabrication, component sourcing, assembly, programming, inspection and testing under one coordinated workflow.
Process controls for dense compute, vision and communication boards using QFN, BGA, micro-BGA and small passive packages.
Support for thicker copper, thermal interfaces, large terminals, power devices and mixed SMT/through-hole construction.
Customer-defined firmware loading, serial-number handling and controlled provisioning steps integrated with the build flow.
Fixture and procedure support for I/O, communications, power rails, sensors, motor-control signals and safety-related diagnostics.
Cleaning, conformal coating, selective masking, staking and other protective processes based on the operating environment.
Build feedback, defect analysis, engineering change control and repeatable documentation as volumes grow.
Frequently asked questions
Yes. Projects can include digital control, AI/vision, sensor interfaces, industrial communications, low-voltage logic and higher-current motor or power boards. Share the electrical and thermal requirements for each assembly so the process can be reviewed as a complete board family.
Yes. Prototype and small-to-medium batch support is useful for robotics teams validating mechanics, firmware and electronics together. We can review the design for manufacturability before the first build and carry lessons into later revisions.
Gerber or ODB++ data, drill files, BOM, centroid/pick-and-place data, assembly drawings and quantity are the usual starting point. Add target workmanship class, stack-up or impedance needs, test instructions, firmware, coating and traceability requirements where applicable.
Our component purchasing service can review availability and source from approved channels. If an item is constrained or nearing end of life, proposed alternates should be electrically and mechanically approved by your engineering team before use.
X-ray inspection can be applied to packages and joints that cannot be evaluated visually. It is normally combined with solder-paste inspection, AOI and functional or in-circuit testing according to the risk and board design.
Yes, coating can be specified to improve resistance to moisture, dust and contamination. Coating material, thickness, keep-out areas, masking, cure method and inspection criteria should be defined for the intended operating environment.
Yes. We can work with customer test specifications and fixtures or help plan a board-level functional test. Coverage may include power rails, current consumption, communications, sensors, digital/analog I/O, programming and simulated motor-control signals.
Manufacturing packages are handled against the released revision supplied for the order. Clear file naming, controlled BOM versions, approved change records and serialized or lot-level traceability options help prevent mixed revisions.
Use the same secure inquiry form as our homepage to share contact details, project requirements and manufacturing files with our team.
