A conformal coating of pcba is a thin polymeric film applied to assembled circuit boards to protect against moisture, dust, chemicals, and temperature extremes. It is the difference between a board that fails in six months in a humid industrial environment and one that operates reliably for a decade. At Keepbest, we apply conformal coating to thousands of boards monthly across medical, automotive, aerospace, and industrial applications. This guide explains the coating types, application methods, and how to select the right protection for your product.
Why Conformal Coating Matters
Unprotected PCBAs are vulnerable to a range of environmental threats.
Moisture and Condensation: Water films on the board surface create conductive paths between traces, leading to leakage currents, corrosion, and electrochemical migration.
Dust and Particulate: Accumulated dust absorbs moisture and can bridge conductors. In high-voltage applications, dust tracking causes arcing and carbonization.
Chemical Exposure: Industrial atmospheres containing solvents, oils, acids, or salt spray attack unprotected copper traces and solder joints.
Temperature Cycling: Thermal expansion mismatch between the board and components induces stress. Coating materials with matched coefficients of thermal expansion reduce this stress.
Major Conformal Coating Types
| Type | Chemistry | Key Properties | Best Applications |
| Acrylic | Acrylic resin | Easy to apply and repair; good moisture resistance; poor solvent resistance | Indoor electronics, consumer products, general protection |
| Urethane / Polyurethane | Polyurethane resin | Excellent moisture and chemical resistance; harder to repair | Industrial controls, outdoor electronics, marine applications |
| Silicone | Silicone resin | Wide temperature range (-60°C to +200°C); flexible; poor abrasion resistance | High-temperature applications, under-hood automotive, LED lighting |
| Epoxy | Epoxy resin | Hard, durable, excellent chemical resistance; difficult to rework | Harsh chemical environments, military, aerospace |
| Parylene | Poly-para-xylylene | Ultra-thin, pinhole-free, uniform coverage by vapor deposition | Medical implants, aerospace, high-reliability miniature assemblies |
Application Methods
Spray Coating: Automated robotic spray systems apply coating with programmable patterns and thickness control. Best for high-volume production with complex board geometries. Typical thickness: 25 to 75 microns.
Dip Coating: Boards are immersed in coating material and withdrawn at controlled speed. Best for simple geometries and maximum throughput. Requires masking of connectors and test points.

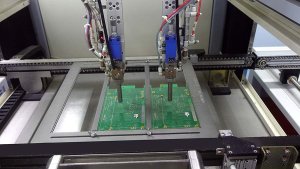

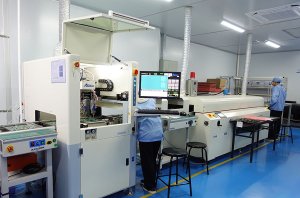

Selective Coating: Automated dispense valves apply coating only to specified areas. Best for mixed-technology boards where connectors must remain uncoated. Programming is required for each board design.
Brush Coating: Manual application for prototypes and touch-up. Not recommended for production due to thickness inconsistency.
Parylene Deposition: Vapor phase polymerization in a vacuum chamber. No liquid phase means no capillary flow, no edge effects, and complete coverage including beneath components. Requires specialized equipment and is significantly more expensive than liquid coatings.
Coating Thickness and Quality Verification
| Parameter | Typical Specification | Measurement Method |
| Wet film thickness | 50–100 microns | Wet film comb gauge |
| Dry film thickness | 25–75 microns | Eddy current gauge or cross-section microscopy |
| Coverage completeness | 100% of designated areas | UV inspection (fluorescent additives) |
| Adhesion | No peeling or flaking | Tape test per ASTM D3359 |
| Insulation resistance | >10^12 ohms | Megohmmeter at rated voltage |
Your manufacturing partner performs 100% UV inspection on every coated board to verify coverage completeness. Automated optical inspection systems detect voids, thin spots, and contamination.
Masking and Design Considerations
Not every area of a board should be coated. Connectors, switches, test points, and thermal pads require masking before coating application.
Masking Materials: Polyimide tape, latex masking boots, and peelable masking compounds. Selection depends on coating chemistry and cure temperature.
Design for Coating: Maintain minimum 3 mm clearance between coated areas and unmasked components. Avoid deep cavities or tight gaps where coating cannot flow evenly. Add fiducials for selective coating alignment.
Rework and Repair
Rework of conformal coated boards requires selective removal of coating material before soldering. Acrylic coatings are easiest to remove with solvents. Urethane and epoxy require mechanical abrasion or thermal removal. Parylene cannot be selectively removed and requires complete stripping.
The EMS provider maintains rework procedures for each coating type with documented removal methods, reapplication protocols, and requalification testing.
Frequently Asked Questions
Q: Does every PCBA need conformal coating?
No. Boards operating in benign indoor environments with no exposure to moisture or chemicals may not require coating. The decision should be based on the product’s intended operating environment and reliability requirements.
Q: How much does conformal coating add to assembly cost?
Typical cost adder ranges from 5% to 15% of total assembly cost depending on coating type, application method, and masking complexity. Parylene deposition can add 50% or more due to specialized equipment and process time.
Q: Can conformal coating be applied over no-clean flux residue?
It depends on the flux chemistry and coating type. Some no-clean flux residues are compatible with acrylic and urethane coatings. Others require cleaning before coating to prevent adhesion failure. Keepbest validates flux-coating compatibility during NPI.
Q: What is the difference between conformal coating and potting?
Conformal coating is a thin film that conforms to the board topography. Potting embeds the entire board in a solid compound. Potting provides maximum protection but prevents repair and adds significant weight.
Q: How do I specify conformal coating in my design?
Include the coating type, thickness, coverage areas, masking requirements, and acceptance criteria in your assembly drawing. Reference IPC-CC-830 or MIL-I-46058 as applicable.
Q: Can Our assembly team apply more than one type of coating?
Yes. We operate spray, dip, selective, and parylene deposition lines. We can recommend the optimal coating for your application based on environmental requirements, cost targets, and reliability needs.
Not sure which coating your product needs? Send your application requirements to the Keepbest engineering team. We will evaluate your operating environment, regulatory requirements, and cost constraints — then recommend the optimal protection strategy.
